Lion 700/700P Breathalyser
- Police Grade Accuracy -
Widely Used in Global Law Enforcement, Medical and Industrial Markets The lion alcolmeter® 700 is a compact and easy to use breath alcohol analysis instrument certified to EN15964
A variant is now Type Approved by the Home Office, Great Britain, for UK Police use.
The Lion 700 Alcolmeter/Alcometer Breathalyzer is n exciting new device, for use in Law Enforcement, Industrial Safety or Health & Well Being Programmes - ideally suited for professional, company or personal use. it can be used literally anywhere.
The Lion 700 has a simple multi-button user interface, internal memory for simple data capture, fully automatic sampling system and a Multi-language version available. It is also compact and is a handy pocket size.
The Lion 700 meets Uk Home Office Standard and EN 15964 which is a European Standard for handheld breathalysers for Police use.

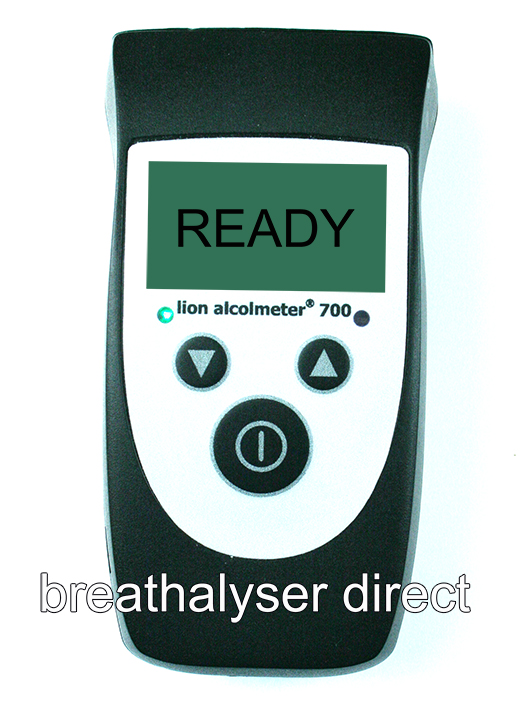

Lion 700 Alcolmeter/Alcometer Breathalyser (No Printer version)
It uses Lion fuel cell sensor, so the reading is very unlikely to be affected by anything in the subject's breath other than alcohol. The Lion 700 Breathalyser is fully automatic, through microprocessor control, so it is very simple to use.
The operator switches the instrument on and, when instructed, attaches a new mouthpiece to the small sampling port. The subject should then blow into the mouthpiece until the sample is taken. A short time later their alcohol level is shown on the clear, easy-to-read display: this is illuminated, for use at night.
When the reading has been taken, the operator removes and discards the mouthpiece. After a short delay the instrument is ready to use again on the next subject, as required. The result of the last test can be recalled to the display, if required.
Do I Need Specific Training to Operate These Devices ?
In a word - No ! It is extremely easy to use and will take minutes to get you up and running. Fit a mouthpiece, turn on, wait for 'take sample' message'. Blow until the tone stops and then read the display - UK Driving limit is 0.35 mg/L. If the blow is insufficient you will get an error message. Foolproof technology.
This instrument can also used with a nasal tube, for sampling breath from a comatose patient in medical applications.
| Indication of BrAC |
0.02 to 2.50 mg/litre BrAc |
| Warm Up Time |
0 secs |
| Response Time |
Typically 4s at 0.00mg/L; within 10s if alcohol is present |
| Recycle Time |
Typically 5s at 0.00mg/L; within 30s up to 0.50mg/L, and within 60s between 0.50 and 2.00mg/L
|
| Mouth Piece |
3 x Included |
| Sensor |
Lion Fuel Cell - Micro Version |
| Power Supply |
2 x AA Batteries Supplied |
| Weight |
160g including batteries |
| Dimensions (mm) |
120mm Height x 60 width x 30 depth |
| Remarks |
Auto power off
Flow Check Technology
Error Sensing Technology
Battery Low Indication |
 Click on the Adobe image to Download the sales brochure - may take a few minutes

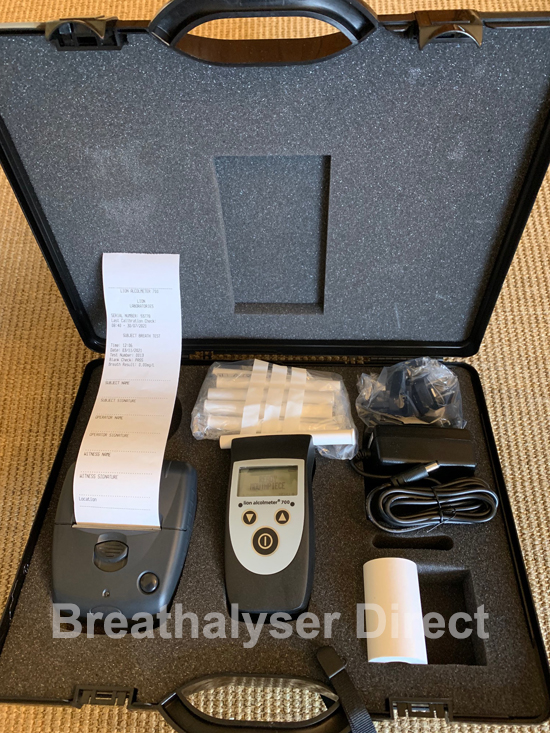

Lion 700 Alcolmeter/Alcometer Breathalyser (With Printer Combination)
The Lion 700P Alcometer Breathalyser has all the features of the standard Police issue Lion 700 but also offers the ability to link to a portable printer. This is a superb device, very easy to use, offering evidential results. The Lion 700P is the most cost effective UK Home Office approved device on the market today.
This generates a permanent record of each test, with space for the recording of other details, such as names and location. This fully portable breath alcohol system combines all the analytical capabilities of the
well proven 500 with a small but powerful printer, in a convenient, go-anywhere package:
Do I Need Specific Training to Operate These Devices ?
In a word - No ! It is extremely easy to use and will take minutes to get you up and running. Fit a mouthpiece, turn on, wait for 'take sample' message'. Blow until the tone stops and then read the display - UK Driving limit is 0.35 mg/L. If the blow is insufficient you will get an error message. Foolproof technology. If you need to print off the result, connect the printer and it will automatically print off the test result.
THAT IS IT !
Whilst the price of the Lion 700P inclusing printer may seem expensive, consider the cost involved of an employee suspended/dismissed on the results of a 'consumer' grade breathalyzer which is not Home Office approved and the results from which do not stand up in a tribunal.
The costs to your business could be substantial if a dismissal is deemed unfair - A Lion Police Grade, Home Office Approved device will give you peace of mind and will stand up to the most severe scrutiny - proven !
Easy Breath Sampling
- using a low-cost disposable mouthpiece, for simple, hygienic operation
Lion Fuel Cell Sensor
- for the fast yet accurate quantification of the subject’s breath alcohol level
Large, Clear Readout
- the test procedure and alcohol reading are shown in an easy-to-use graphics display system
Printer
- produces multiple, tamper-proof copies of the alcohol reading, with date and time; plus
spaces for operator and subject details and location to be entered by hand
Memory
- every breath test record is stored in memory, and can be downloaded to a PC for analysis
by management
Both breathalyser and printer are housed in a small, lightweight carrying case, to produce a low-cost, small analytical go-anywhere system for on-the-spot evidential breath analysis [subject to local specification and regulations permitting].
The 700P is supplied as a complete kit, which includes all the following items:
- lion alcolmeter® 700 instrument
- Rechargeable printer
- Printer charger unit
- 2 spare printer rolls [thermal]
- 10 disposable mouthpieces
- User Handbook
| Indication of BrAC |
0.00 to 2.00 mg/litre BrAc |
| Warm Up Time |
0 secs |
| Response Time |
Typically 4s at 0.00mg/L; within 10s if alcohol is present |
| Recycle Time |
Typically 5s at 0.00mg/L; within 30s up to 0.50mg/L, and within 60s between 0.50 and 2.00mg/L
|
| Mouth Piece |
5 x Included |
| Sensor |
Lion Fuel Cell - Micro Version |
| Power Supply |
2 x AA Batteries Supplied |
| Weight |
1500g including batteries |
| Kit Dimensions (mm) |
322mm Height x 278 width x 74 depth |
| Remarks |
Thermal Printer: around 500 tests when fully charged
Paper Width:56mm
Auto power off
Flow Check Technology
Error Sensing Technology
Battery Low Indication |
Click on the Adobe image to Download the sales brochure - may take a few minutes
|
